甲基丁二酸二甲酯

甲基丁二酸二甲酯 基本信息
CAS号 21307-96-0 分子式 C7H12O4
分子量 160.16800 精确质量  160.07400
PSA  52.60000 LogP  0.35860

等价的CAS号:

21307-96-0,22644-27-5,63163-08-6,1604-11-1

基本信息 展开↓

CAS号:
1604-11-1
3D弹球模型:
立即前往扯扯看
分子式:
C7H12O4
分子量:
160.16800
中文名称:
甲基丁二酸二甲酯
英文名称:
dimethyl 2-methylbutanedioate
中文别名:
甲基丁二酸二甲酯;
2-甲基琥珀酸二甲酯
英文别名:
dimethyl 2-methylbutanedioate;
Butanedioic acid,methyl-,dimethyl ester;
Succinic acid,methyl-,dimethyl ester;
DIMETHYL METHYLSUCCINATE;
Dimethyl 2-methylsuccinate
精确分子量/精确质量:
160.07400
极性分子表面积/PSA:
52.60000
油水分配系数/LogP:

LogP值指的是某物质在正辛醇/水两相体系中的分配系数的对数值,反映了物质在油水两相中的分配情况。其中、LogP值越大,说明该物质越亲油;反之,LogP值越小,则说明该物质越亲水。
贝尔斯坦号/MDL:
MFCD00008449
EINECS:
216-506-1
PubChem:
24850770
InChI:
The Key: NFOQJNGQQXICBY-UHFFFAOYSA-N

物化性质展开↓

密度:
1.057g/cm3
沸点:
196ºC at 760mmHg
闪点:
83.3ºC
折射率:
n20/D 1.42(lit.)
蒸汽压:
0.408mmHg at 25°C
存储条件/存储方法:

常温 ,避光,通风干燥处

稳定性相关:

常温常压下稳定

其它信息:

1.       性状:未确定

2.       密度(g/mL,15℃):1.076

3.       相对密度(25℃,4℃):1.009685.6

4.       相对密度(20℃,4℃):1.0755

5.       沸点(ºC,常压):196

6.       折射率:1.420

7.       闪点(ºC):83

8.       常温折射率(n20):1.4200

9.       比旋光度(º): 未确定

10.    蒸气压(kPa,25ºC):未确定

11.    饱和蒸气压(kPa,60ºC):未确定

12.    燃烧热(KJ/mol):未确定

13.    临界温度(ºC):未确定

14.    临界压力(KPa):未确定

15.    油水(辛醇/水)分配系数的对数值:未确定

16.    爆炸上限(%,V/V):未确定

17.    爆炸下限(%,V/V):未确定

18.    溶解性:未确定

安全信息展开↓

海关代码:
2917190090
WGK_Germany:
2
德国有关水污染物质的分类清单

合成路线查看所有的合成路线

  • 617-52-7

    衣康酸二甲酯

  • ~99%

  • 22644-27-5

    R-2-甲基琥珀酸甲酯

  • +

  • 1604-11-1

    甲基丁二酸二甲酯

  • 617-52-7

    衣康酸二甲酯

  • ~98%

  • 1604-11-1

    甲基丁二酸二甲酯

  • 1283688-51-6

    1283688-51-6

  • ~96%

  • 1604-11-1

    甲基丁二酸二甲酯

化学图谱

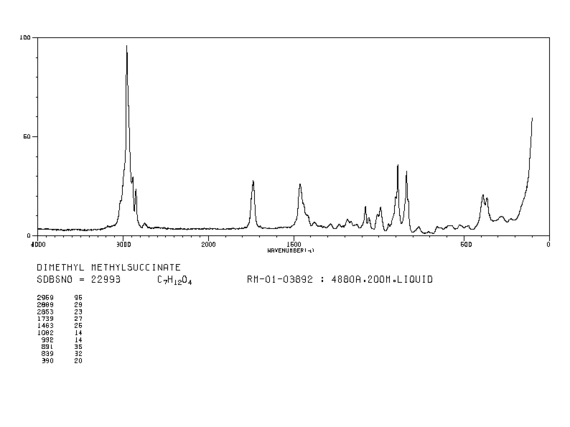

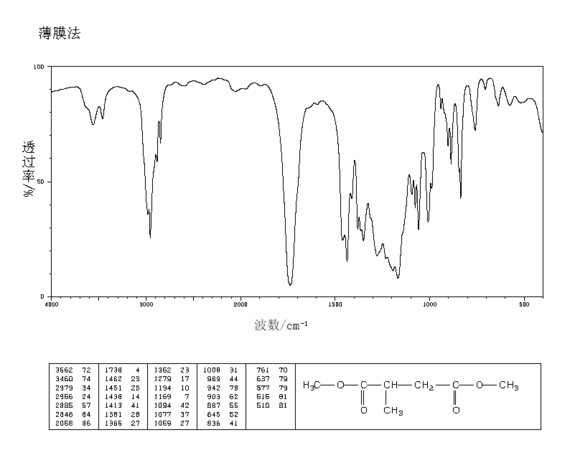

  1. 甲基丁二酸二甲酯红外图谱(IR1)

  2. 甲基丁二酸二甲酯红外图谱(IR2)

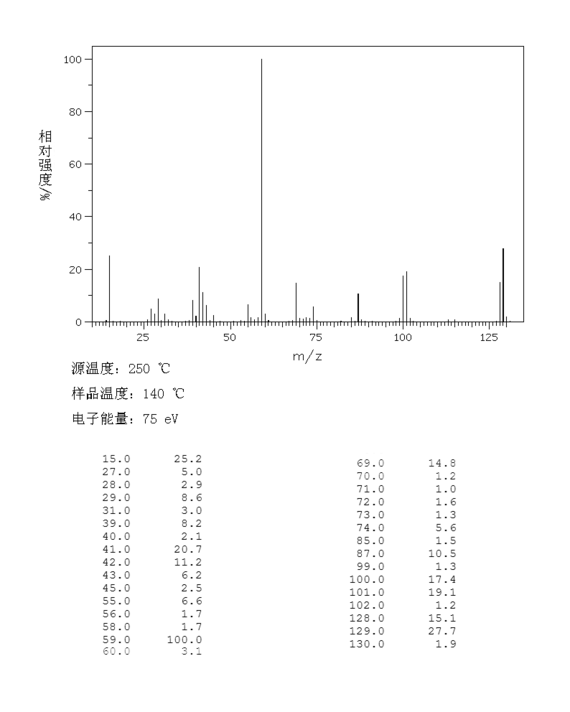

  3. 甲基丁二酸二甲酯质谱(MS)

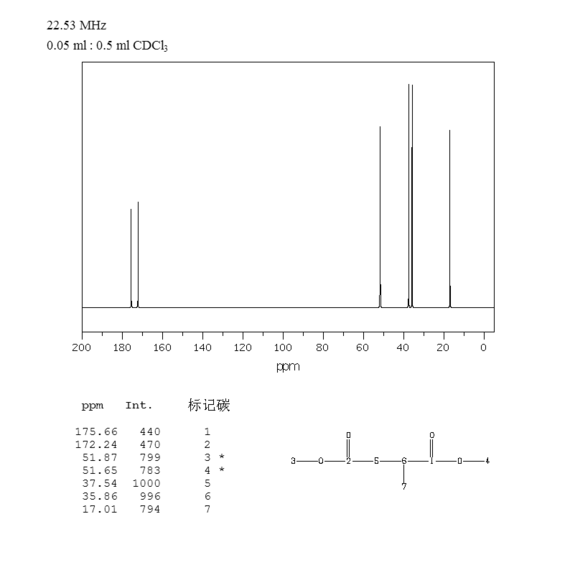

  4. 甲基丁二酸二甲酯核磁图(13CNMR)

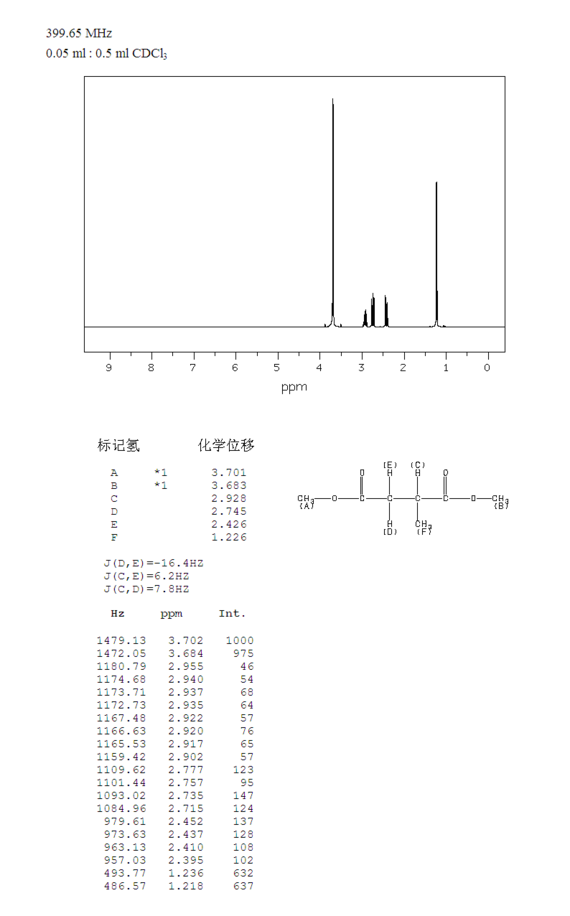

  5. 甲基丁二酸二甲酯核磁图(1HNMR)

上一页 1/4 下一页

毒理性展开↓

生态数据:

通常对水是不危害的,若无政府许可,勿将材料排入周围环境

MSDS 展开↓


Section 1. IDENTIFICATION OF THE SUBSTANCE/MIXTURE
  Product identifiers
    Product name        : Dimethyl methylsuccinate
    CAS-No.        : 1604-11-1
  Relevant identified uses of the substance or mixture and uses advised against
    Identified uses        : Laboratory chemicals, Manufacture of substances



Section 2. HAZARDS IDENTIFICATION
  Classification of the substance or mixture
    Not a hazardous substance or mixture according to Regulation (EC) No. 1272/2008.
    Not a hazardous substance or mixture according to EC-directives 67/548/EEC or 1999/45/EC.
  Label elements
    The product does not need to be labelled in accordance with EC directives or respective national laws.
  Other hazards - none

Section 3. COMPOSITION/INFORMATION ON INGREDIENTS
  Substances
    Formula        : C7H12O4
    Molecular Weight        : 160,17 g/mol

Section 4. FIRST AID MEASURES
  Description of first aid measures
  General advice
    Consult a physician. Show this safety data sheet to the doctor in attendance.
  If inhaled
    If breathed in, move person into fresh air. If not breathing, give artificial respiration. Consult a physician.
  In case of skin contact
    Wash off with soap and plenty of water. Consult a physician.
  In case of eye contact
    Flush eyes with water as a precaution.
  If swallowed
    Do NOT induce vomiting. Never give anything by mouth to an unconscious person. Rinse mouth with
    water. Consult a physician.
  Most important symptoms and effects, both acute and delayed
  Indication of any immediate medical attention and special treatment needed
    no data available

Section 5. FIREFIGHTING MEASURES
  Extinguishing media
  Suitable extinguishing media
    For small (incipient) fires, use media such as "alcohol" foam, dry chemical, or carbon dioxide. For large
    fires, apply water from as far as possible. Use very large quantities (flooding) of water applied as a mist or
    spray; solid streams of water may be ineffective. Cool all affected containers with flooding quantities of
    water.
  Special hazards arising from the substance or mixture
    Carbon oxides
  Advice for firefighters
    Wear self contained breathing apparatus for fire fighting if necessary.
  Further information
    Use water spray to cool unopened containers.

Section 6. ACCIDENTAL RELEASE MEASURES
  Personal precautions, protective equipment and emergency procedures
    Avoid breathing vapors, mist or gas. Remove all sources of ignition. Beware of vapours accumulating to
    form explosive concentrations. Vapours can accumulate in low areas.
  Environmental precautions
    Prevent further leakage or spillage if safe to do so. Do not let product enter drains.
  Methods and materials for containment and cleaning up
    Contain spillage, and then collect with an electrically protected vacuum cleaner or by wet-brushing and
    place in container for disposal according to local regulations (see section 13). Keep in suitable, closed
    containers for disposal.
  Reference to other sections
    For disposal see section 13.

Section 7. HANDLING AND STORAGE
  Precautions for safe handling
    Avoid inhalation of vapour or mist.
    Keep away from sources of ignition - No smoking.Take measures to prevent the build up of electrostatic
    charge.
  Conditions for safe storage, including any incompatibilities
    Store in cool place. Keep container tightly closed in a dry and well-ventilated place. Containers which are
    opened must be carefully resealed and kept upright to prevent leakage.
  Specific end uses
    no data available

Section 8. EXPOSURE CONTROLS/PERSONAL PROTECTION
  Control parameters
  Components with workplace control parameters
  Exposure controls
  Appropriate engineering controls
    Handle in accordance with good industrial hygiene and safety practice. Wash hands before breaks and
    at the end of workday.
  Personal protective equipment
  Eye/face protection
    Safety glasses with side-shields conforming to EN166 Use equipment for eye protection tested
    and approved under appropriate government standards such as NIOSH (US) or EN 166(EU).
  Skin protection
    Handle with gloves. Gloves must be inspected prior to use. Use proper glove removal technique
    (without touching glove's outer surface) to avoid skin contact with this product. Dispose of
    contaminated gloves after use in accordance with applicable laws and good laboratory practices.
    Wash and dry hands.
    The selected protective gloves have to satisfy the specifications of EU Directive 89/686/EEC and
    the standard EN 374 derived from it.
  Body Protection
    impervious clothing, The type of protective equipment must be selected according to the
    concentration and amount of the dangerous substance at the specific workplace.
  Respiratory protection
    Where risk assessment shows air-purifying respirators are appropriate use a full-face respirator
    with multi-purpose combination (US) or type ABEK (EN 14387) respirator cartridges as a backup
    to engineering controls. If the respirator is the sole means of protection, use a full-face supplied air
    respirator. Use respirators and components tested and approved under appropriate government
    standards such as NIOSH (US) or CEN (EU).

Section 9. PHYSICAL AND CHEMICAL PROPERTIES
  Information on basic physical and chemical properties
    a) Appearance        Form: liquid
    b) Odour        no data available
    c) Odour Threshold        no data available
    d) pH        no data available
    e) Melting point/freezing        no data available
    point
    f) Initial boiling point and 196 °C - lit.
    boiling range
    g) Flash point        83 °C - closed cup
    h) Evaporation rate        no data available
    i) Flammability (solid, gas) no data available
    j) Upper/lower        no data available
    flammability or
    explosive limits
    k) Vapour pressure        no data available
    l) Vapour density        no data available
    m) Relative density        1,076 g/mL at 25 °C
    n) Water solubility        no data available
    o) Partition coefficient: n- log Pow: 0,755
    octanol/water
    p) Autoignition        no data available
    temperature
    q) Decomposition        no data available
    temperature
    r) Viscosity        no data available
    s) Explosive properties        no data available
    t) Oxidizing properties        no data available
  Other safety information
    no data available

Section 10. STABILITY AND REACTIVITY
  Reactivity
    no data available
  Chemical stability
    no data available
  Possibility of hazardous reactions
    no data available
  Conditions to avoid
    Heat, flames and sparks.
  Incompatible materials
    no data available
  Hazardous decomposition products
    Other decomposition products - no data available

Section 11. TOXICOLOGICAL INFORMATION
  Information on toxicological effects
  Acute toxicity
    no data available
  Skin corrosion/irritation
    no data available
  Serious eye damage/eye irritation
    no data available
  Respiratory or skin sensitization
    no data available
  Germ cell mutagenicity
    no data available
  Carcinogenicity
    IARC:        No component of this product present at levels greater than or equal to 0.1% is identified as
    probable, possible or confirmed human carcinogen by IARC.
  Reproductive toxicity
    no data available
  Specific target organ toxicity - single exposure
    no data available
  Specific target organ toxicity - repeated exposure
    no data available
  Aspiration hazard
    no data available
  Potential health effects
  Inhalation        May be harmful if inhaled. May cause respiratory tract irritation.
  Ingestion        May be harmful if swallowed.
  Skin        May be harmful if absorbed through skin. May cause skin irritation.
  Eyes        May cause eye irritation.
  Additional Information
    RTECS: Not available

Section 12. ECOLOGICAL INFORMATION
  Toxicity
    no data available
  Persistence and degradability
    no data available
  Bioaccumulative potential
    no data available
  Mobility in soil
    no data available
  Results of PBT and vPvB assessment
    no data available
  Other adverse effects
    no data available

Section 13. DISPOSAL CONSIDERATIONS
  Waste treatment methods
  Product
    This combustible material may be burned in a chemical incinerator equipped with an afterburner and
    scrubber. Offer surplus and non-recyclable solutions to a licensed disposal company. Contact a licensed
    professional waste disposal service to dispose of this material.
  Contaminated packaging
    Dispose of as unused product.

Section 14. TRANSPORT INFORMATION
  UN number
    ADR/RID: -        IMDG: -        IATA: -
  UN proper shipping name
    ADR/RID: Not dangerous goods
    IMDG: Not dangerous goods
    IATA:        Not dangerous goods
  Transport hazard class(es)
    ADR/RID: -        IMDG: -        IATA: -
  Packaging group
    ADR/RID: -        IMDG: -        IATA: -
  Environmental hazards
    ADR/RID: no        IMDG Marine pollutant: no        IATA: no
  Special precautions for user
    no data available



SECTION 15 - REGULATORY INFORMATION
N/A


SECTION 16 - ADDITIONAL INFORMATION
N/A

海关数据查看详细

中国海关编码:2917190090

概述:
2917190090 其他无环多元羧酸. 增值税率:17.0% 退税率:9.0% 监管条件:无 最惠国关税:6.5% 普通关税:30.0%
申报要素:
品名, 成分含量, 用途, 对苯二甲酸请注明4-CBA值, 对苯二甲酸请注明P-TL酸值, 对苯二甲酸请注明色度, 对苯二甲酸请注明水分
摘要/Summary:
2917190090 acyclic polycarboxylic acids, their anhydrides, halides, peroxides, peroxyacids and their derivatives VAT:17.0% Tax rebate rate:9.0% Supervision conditions:none MFN tariff:6.5% General tariff:30.0%

分子结构与计算化学数据展开↓

计算化学数据


1.疏水参数计算参考值(XlogP):0.4

2.氢键供体数量:0

3.氢键受体数量:4

4.可旋转化学键数量:5

5.互变异构体数量:无

6.拓扑分子极性表面积52.6

7.重原子数量:11

8.表面电荷:0

9.复杂度:153

10.同位素原子数量:0

11.确定原子立构中心数量:0

12.不确定原子立构中心数量:1

13.确定化学键立构中心数量:0

14.不确定化学键立构中心数量:0

15.共价键单元数量:1

上下游相关产品

上游产品

更多
  • 617-52-7

    衣康酸二甲酯

  • 617-53-8

    Methylfumaric acid, dimethyl ester

  • 186581-53-3

    重氮甲烷

  • 2174-58-5

    (S)-(-)-甲基丁二酸

  • 67-56-1

    甲醇

下游产品

更多
  • 111266-16-1

    (S)-2-甲基琥珀酸-1-甲酯

  • 111266-27-4

    (S)-4-甲氧基-2-甲基-4-氧代丁酸
