碘化钛(IV)

碘化钛(IV) 基本信息
CAS号 7720-83-4 分子式 I4Ti
分子量 555.48500 精确质量  555.56600
PSA  0.00000 LogP  3.54280

基本信息 展开↓

CAS号:
7720-83-4
3D弹球模型:
立即前往扯扯看
分子式:
I4Ti
分子量:
555.48500
中文名称:
碘化钛(IV)
英文名称:
TITANIUM (IV) IODIDE
中文别名:
碘化钛(IV);
碘化钛(Ⅳ);
四碘化钛
英文别名:
TITANIUM (IV) IODIDE;
titanium(IV) iodide;
titanium iodide;
iodine titanium;
iodide titanium
精确分子量/精确质量:
555.56600
极性分子表面积/PSA:
0.00000
油水分配系数/LogP:

LogP值指的是某物质在正辛醇/水两相体系中的分配系数的对数值,反映了物质在油水两相中的分配情况。其中、LogP值越大,说明该物质越亲油;反之,LogP值越小,则说明该物质越亲水。
贝尔斯坦号/MDL:
MFCD00043077
EINECS:
231-754-0
PubChem:
24869463
InChI:
InChI=1/4HI.Ti/h4*1H;/q;;;;+4/p-4

生产制备方法及用途展开↓

合成制备方法


所有的接头均为锥形,活塞使用硅酮润滑脂。在管B中投入256g(0.0534mol)的纯海绵钛,置于2段约8cm玻璃棉填充物之间。放入玻璃棉是为了使钛所处的位置不发生移动。同时也起到了使反应进行完全、减缓碘的扩散速度的作用。连接管A和管B,用电炉Ⅰ加热管B至400~425℃,管B中通入干燥的氮气,使氮气从钛上流过。氮气事先通过浓硫酸,再通过装有分子筛的塔进行干燥。管B加热至400或425℃后,将装有碘2710g(0.1068mol)的管C与管B连接起来。停止氮气流,用真空泵将全系统抽真空(1.33Pa左右)。随后将三通旋塞旋至图示的位置。用电炉Ⅱ加热至80℃使碘升华,慢慢导入反应区B中,使之与钛反应。待所有的碘从管C升华出来以后(需10~12h),将氮气通入系统,将装置冷却至室温。除去管C,用带钩的铜丝扒出玻璃棉填充物及未反应的钛(0.23g),用液氮洗涤。接着洗净管C,干燥之,再与管B连接。将管B从与A相接处摘下,保持垂直,在此期间,将图示的暗红褐色的环状产物用刮勺迅速刮掉,立即加以密封。

图IV-6  四碘化钛的制备装置

1—去真空系统;2—液氮阱;3—玻璃棉;4—安全汞封

 精制产物采用如图所示装置。首先洗净管A及管B,干燥后,往B中填塞干燥的玻璃棉后,再连接起来,产物装入管C中,将管C与管B连接起来。将系统抽真空,并保持抽真空的状态。使两个电炉相距约15cm。将电炉Ⅰ加热至80℃,将电炉Ⅱ加热至130~140℃。连续升华12~16h,使粗产品四碘化钛从管C全部升华出来。精制品在两个电炉之间的地方结晶析出。主要杂质碘可在管A及液氮阱内结晶。在管C中残留的褐色残余物甚微,可忽略不计。必要时,还可将B管进一步放入电炉Ⅱ中,再次进行精制。冷却后导入氮气,摘下管C,除去玻璃棉填充物。将带有氮气导入支管及活塞的干燥烧瓶安装在管B上,通过管B将氮气导入烧瓶中。接着,将支管与干燥氮气发生器连接起来,使氮气流以反方向导入,即使氮气能经支管通过烧瓶而导入反应管中。将管B与管A分开,将生成物刮落于烧瓶中。摘下管B,将烧瓶加塞。收量为25.0g。

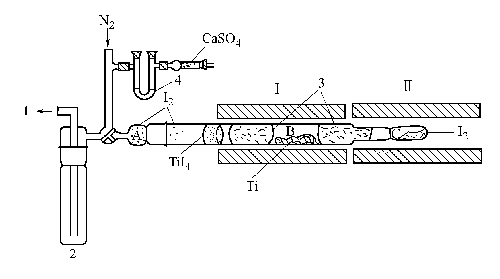

                                                               图IV-7  四碘化钛的精制装置

                               1—经液氮阱与抽真空系统连接;2—精制后的TiI4;3—粗TiI4

物化性质展开↓

外观与性状:
红色-棕色晶体
密度:
4.3 g/cm3
熔点:
150-151ºC
沸点:
377,1ºC
存储条件/存储方法:

干性的保护气体下处置,

保持贮藏器密封

放入紧密的贮藏器内,储存在阴凉,干燥的地方

稳定性相关:

如果遵照规格使用和储存则不会分解

避免接触水分/潮湿.在100~125℃有晶型转变点,高温型为立方晶系晶体,低温型晶体的对称性降低。吸湿性极强。溶于水并水解、发烟。难溶于石油醚。易溶于苯,更易溶于二硫化碳。

其它信息:

1.      性状:具有光泽的暗红褐色结晶。

2.      密度(g/mL 25ºC):4.40

3.      相对蒸汽密度(g/mL,空气=1):未确定

4.      熔点(ºC):150

5.      沸点(ºC,常压):377.2

6.      沸点(ºC,5.2kPa):未确定

7.      折射率(n20/D):未确定

8.      闪点(ºC,):未确定

9.      比旋光度(º):未确定

10.   自燃点或引燃温度(ºC):未确定

11.   蒸气压(kPa,25ºC):未确定

12.   饱和蒸气压(kPa,60ºC):未确定

13.   燃烧热(KJ/mol):未确定

14.   临界温度(ºC):未确定

15.   临界压力(KPa):未确定

16.   油水(辛醇/水)分配系数的对数值(25℃):未确定

17.   爆炸上限(%,V/V):未确定

18.   爆炸下限(%,V/V):未确定

19.   溶解性(mg/mL):溶于水,易水解

安全信息展开↓

包装等级:
II
危险类别码:
R34
安全说明:
26-36/37/39-45
安全标志:
S26:万一接触眼睛,立即使用大量清水冲洗并送医诊治。
S45:出现意外或者感到不适,立刻到医生那里寻求帮助(最好带去产品容器标签)。
:

合成路线查看所有的合成路线

  • 115587-21-8

    115587-21-8

  • ~99%

  • 7720-83-4

    碘化钛(IV)

  • 7440-32-6

  • +

  • 7553-56-2

  • 7720-83-4

    碘化钛(IV)

  • 7550-45-0

    四氯化钛

  • +

  • 7681-11-0

    碘化钾

  • 7720-83-4

    碘化钛(IV)

毒理性展开↓

生态数据:

对水是稍微危害的,若无政府许可,勿将材料排入周围环境

MSDS 展开↓


Section 1: Product Identification
   Chemical Name:       Titanium (IV) iodide (99.99%-Ti) PURATREM
   CAS Registry Number:       7720-83-4
   Formula:       TiI4
   EINECS Number:       231-754-0
   Chemical Family:       metal halide
   Synonym:       Titanium tetraiodide

Section 2: Composition and Information on Ingredients
   Ingredient       CAS Number       Percent       ACGIH (TWA)       OSHA (PEL)
   Title Compound       7720-83-4       100%       no data       no data

Section 3: Hazards Identification
   Corrosive to skin, eyes, and mucous membranes. May cause coughing, wheezing, shortness of breath,
   Emergency Overview:
   headache, nausea and vomiting. Ingestion may cause damage to the mouth, throat and esophagus.
   Primary Routes of Exposure:       Ingestion, inhalation, skin, eyes.
   Eye Contact:       Corrosive to eyes.
   Skin Contact:       Corrosive to skin.
   Inhalation:       Inhalation may cause inflammation of the respiratory tract, edema and chemical pneumonitis.
   Ingestion:       Ingestion may cause damage to the mouth, throat and esophagus.
   Corrosive to skin, eyes and mucous membranes. Inhalation causes coughing, wheezing, shortness of breath,
   Acute Health Affects:
   headache, nausea, and vomiting. Ingestion may cause damage to the mouth throat and esophagus.
   Chronic ingestion of iodides may produce iodism. Symptoms include skin rash, running nose, headache and
   Chronic Health Affects:
   irritation of mucous membranes.
   NTP:       No
   IARC:       No
   OSHA:       No

SECTION 4: First Aid Measures
   Immediately flush the eyes with copious amounts of water for at least 10-15 minutes. A victim may need
   Eye Exposure:
   assistance in keeping their eye lids open. Get immediate medical attention.
   Wash the affected area with water. Remove contaminated clothes if necessary. Seek medical assistance if
   Skin Exposure:
   irritation persists.
   Remove the victim to fresh air. Closely monitor the victim for signs of respiratory problems, such as difficulty
   Inhalation:
   in breathing, coughing, wheezing, or pain. In such cases seek immediate medical assistance.
   Seek medical attention immediately. Keep the victim calm. Give the victim water (only if conscious). Induce
   Ingestion:
   vomiting only if directed by medical personnel.

SECTION 5: Fire Fighting Measures
   Flash Point:       not applicable
   Autoignition Temperature:       none
   Explosion Limits:       none
   Extinguishing Medium:       none required
   If involved in a fire, fire fighters should be equipped with a NIOSH approved positive pressure self-contained
   Special Fire Fighting Procedures:
   breathing apparatus and full protective clothing.
   Hazardous Combustion and       If involved in a fire this material may emit corrosive hydrogen iodide fumes.
   Decomposion Products:
   Unusual Fire or Explosion Hazards: No unusual fire or explosion hazards.

SECTION 6: Accidental Release Measures
   Small spills can be mixed with powdered sodium bicarbonate, lime, or calcium carbonate and swept up.
   Spill and Leak Procedures:       Spillage in areas not adequately ventilated may require an evacuation of area. Emergency response teams
   will require self-contained breathing apparatus.

SECTION 7: Handling and Storage
   Store material in a tightly sealed bottle away from moisture. If possible, handle material in an efficient fume
   Handling and Storage:
   hood. Prolonged exposure to the atmosphere may lead to degradation of the product.

SECTION 8: Exposure Controls and Personal Protection
   Eye Protection:       Always wear approved safety glasses when handling a chemical substance in the laboratory.
   Skin Protection:       Wear protective clothing and gloves. Consult with glove manufacturer to determine the proper type of glove.
   Ventilation:       If possible, handle the material in an efficient fume hood.
   In the absence of adequate ventilation a respirator should be worn. The use of a respiratory requires a
   Respirator:
   Respirator Protection Program to be in compliance with 29 CFR 1910.134.
   Ventilation:       If possible, handle the material in an efficient fume hood.
   Additional Protection:       No additional protection required.

SECTION 9: Physical and Chemical Properties
   Color and Form:       black xtl.
   Molecular Weight:       555.52
   Melting Point:       150°
   Boiling Point:       377.1°C
   Vapor Pressure:       no data
   Specific Gravity:       4.3
   Odor:       Pungent odor.
   Solubility in Water:       reacts with water

SECTION 10: Stability and Reactivity
   Stability:       moisture sensitive
   Hazardous Polymerization:       no hazardous polymerization
   Conditions to Avoid:       contact with moisture
   Incompatibility:       Oxidizing agents, water, alcohols, active metals and halogens
   Decomposition Products:       with moisture: hydrogen iodide

SECTION 11: Toxicological Information
   RTECS Data:       No information available in the RTECS files.
   Carcinogenic Effects:       no data
   Mutagenic Effects:       no data
   Tetratogenic Effects:       no data

SECTION 12: Ecological Information
   Ecological Information:       No information available

SECTION 13: Disposal Considerations
   Disposal:       Dispose of according to local, state and federal regulations.

SECTION 14: Transportation
   Shipping Name (CFR):       Corrosive Solid, Acidic, Inorganic, N.O.S.
   Hazard Class (CFR):       8
   Additional Hazard Class (CFR):       NA
   Packaging Group (CFR):       II
   UN ID Number (CFR):       UN# 3260
   Shipping Name (IATA):       Corrosive Solid, Acidic, Inorganic, N.O.S.
   Hazard Class (IATA):       8
   Additional Hazard Class (IATA):       NA
   Packaging Group (IATA):       II
   UN ID Number (IATA):       UN# 3260

SECTION 15: Regulatory Information
   TSCA:       Listed in the TSCA inventory.
   SARA (Title 313):       Title compound not listed.
   Second Ingredient:       none


SECTION 16 - ADDITIONAL INFORMATION
N/A

分子结构与计算化学数据展开↓

计算化学数据


1.疏水参数计算参考值(XlogP):无

2.氢键供体数量:0

3.氢键受体数量:0

4.可旋转化学键数量:0

5.互变异构体数量:无

6.拓扑分子极性表面积0

7.重原子数量:5

8.表面电荷:0

9.复杂度:19.1

10.同位素原子数量:0

11.确定原子立构中心数量:0

12.不确定原子立构中心数量:0

13.确定化学键立构中心数量:0

14.不确定化学键立构中心数量:0

15.共价键单元数量:1
