1,4,7,10-四氮环十四烷

1,4,7,10-四氮环十四烷 基本信息
CAS号 295-14-7 分子式 C9H22N4
分子量 186.29800 精确质量  186.18400
PSA  48.12000 LogP  0.06370

基本信息 展开↓

CAS号:
295-14-7
3D弹球模型:
立即前往扯扯看
分子式:
C9H22N4
分子量:
186.29800
中文名称:
1,4,7,10-四氮环十四烷
英文名称:
1,4,7,10-tetrazacyclotridecane
中文别名:
1,4,7,10-四氮环十四烷;
1,4,7,10-四氮杂环十三烷
英文别名:
1,4,7,10-tetrazacyclotridecane;
1,4,7,11-tetraazacyclotridecane;
1,4,7,10-tetra-azacyclotridecane;
1,4,7,8-tetra-azacyclotridecane
精确分子量/精确质量:
186.18400
极性分子表面积/PSA:
48.12000
油水分配系数/LogP:

LogP值指的是某物质在正辛醇/水两相体系中的分配系数的对数值,反映了物质在油水两相中的分配情况。其中、LogP值越大,说明该物质越亲油;反之,LogP值越小,则说明该物质越亲水。
InChI:
InChI=1/C9H22N4/c1-2-10-4-6-12-8-9-13-7-5-11-3-1/h10-13H,1-9H2

物化性质展开↓

密度:
0.867g/cm3
沸点:
300.5ºC at 760mmHg
闪点:
139.7ºC
折射率:
1.425
蒸汽压:
0.001mmHg at 25°C
其它信息:

一、物性数据

性状:不可用

密度(g/mL,25/4℃): 不可用

相对蒸汽密度(g/mL,空气=1):不可用

熔点(ºC):不可用

沸点(ºC,常压):不可用

沸点(ºC,5.2kPa): 不可用

折射率: 不可用

闪点(ºC): 不可用

比旋光度(º): 不可用

自燃点或引燃温度(ºC): 不可用

蒸气压(kPa,25ºC): 不可用

饱和蒸气压(kPa,60ºC): 不可用

燃烧热(KJ/mol):不可用

临界温度(ºC): 不可用

临界压力(KPa): 不可用

油水(辛醇/水)分配系数的对数值:不可用

爆炸上限(%,V/V):不可用

爆炸下限(%,V/V): 不可用

溶解性:不可用

安全信息展开↓

海关代码:
2933990090

合成路线查看所有的合成路线

  • 773837-37-9

    sodium cyanide

  • +

  • 71928-49-9

    71928-49-9

  • 48042-08-6

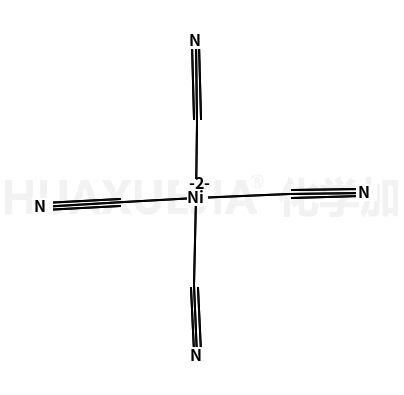

    tetracyanonickelate(2-)

  • +

  • 295-14-7

    1,4,7,10-四氮环十四烷

  • 773837-37-9

    sodium cyanide

  • +

  • 164203-36-5

    164203-36-5

  • 48042-08-6

    tetracyanonickelate(2-)

  • +

  • 295-14-7

    1,4,7,10-四氮环十四烷

  • 112-24-3

    三乙烯四胺(TETA)

  • 295-14-7

    1,4,7,10-四氮环十四烷

毒理性展开↓

毒理学数据:

二、毒理学数据:

急性毒性:不可用 。

生态数据:

三、生态学数据:

1、其它有害作用:该物质对环境可能有危害,对水体应给予特别注意。

MSDS 展开↓


Section 1: Product Identification
   Chemical Name:       1,4,7,10-Tetraazacyclotridecane, min. 98%
   CAS Registry Number:       295-14-7
   Formula:       C9H22N4
   EINECS Number:       none
   Chemical Family:       organic amine
   Synonym:       none

Section 2: Composition and Information on Ingredients
   Ingredient       CAS Number       Percent       ACGIH (TWA)       OSHA (PEL)
   Title compound       295-14-7       100%       no data       no data

Section 3: Hazards Identification
   Emergency Overview:       Irritating to skin, eyes and respiratory tract
   Primary Routes of Exposure:       Inhalation, skin, eyes
   Eye Contact:       Causes slight to mild irritation of the eyes.
   Skin Contact:       Causes irritation to the skin
   Inhalation:       Causes irritation to the nose, mucous membranes and respiratory tract
   Ingestion:       No information on the physiological effects of ingestion. May be harmful if swallowed.
   Acute Health Affects:       Irritating to skin, eyes and respiratory tract
   Chronic Health Affects:       No information available on long-term chronic effects
   NTP:       No
   IARC:       No
   OSHA:       No

SECTION 4: First Aid Measures
   Immediately flush the eyes with copious amounts of water for at least 10-15 minutes. A victim may need
   Eye Exposure:
   assistance in keeping their eye lids open. Get immediate medical attention.
   Wash the affected area with water. Remove contaminated clothes if necessary. Seek medical assistance if
   Skin Exposure:
   irritation persists.
   Remove the victim to fresh air. Closely monitor the victim for signs of respiratory problems, such as difficulty
   Inhalation:
   in breathing, coughing, wheezing, or pain. In such cases seek immediate medical assistance.
   Seek medical attention immediately. Keep the victim calm. Give the victim water (only if conscious). Induce
   Ingestion:
   vomiting only if directed by medical personnel.

SECTION 5: Fire Fighting Measures
   Flash Point:       no data
   Autoignition Temperature:       no data
   Explosion Limits:       none
   Extinguishing Medium:       carbon dioxide, dry chemical or foam
   If this product is involved in a fire, fire fighters should be equipped with a NIOSH approved positive pressure
   Special Fire Fighting Procedures:
   self-contained breathing apparatus and full protective clothing.
   Hazardous Combustion and       If involved in a fire, this material may emit irritating organic fumes
   Decomposion Products:
   Unusual Fire or Explosion Hazards: No unusual fire or explosion hazards

SECTION 6: Accidental Release Measures
   Small spills can be mixed with vermiculite, sodium carbonate or other suitable non-combustible adsorbent and
   Spill and Leak Procedures:
   swept up.

SECTION 7: Handling and Storage
   Handling and Storage:       Store in a tightly sealed container. Keep in a cool, dry place.

SECTION 8: Exposure Controls and Personal Protection
   Eye Protection:       Always wear approved safety glasses when handling a chemical substance in the laboratory.
   Skin Protection:       Wear protective clothing and gloves.
   Ventilation:       Handle the material in an efficient fume hood.
   If ventilation is not available a respirator should be worn. The use of respirators requires a Respirator
   Respirator:
   Protection Program to be in compliance with 29 CFR 1910.134.
   Ventilation:       Handle the material in an efficient fume hood.
   Additional Protection:       No additional protection required.

SECTION 9: Physical and Chemical Properties
   Color and Form:       white to yellow powder
   Molecular Weight:       186.30
   Melting Point:       no data
   Boiling Point:       no data
   Vapor Pressure:       no data
   Specific Gravity:       no data
   Odor:       not determined
   Solubility in Water:       insoluble

SECTION 10: Stability and Reactivity
   Stability:       air and moisture stable
   Hazardous Polymerization:       no hazardous polymerization
   Conditions to Avoid:       none
   Incompatibility:       oxidizing agents
   Decomposition Products:       carbon dioxide, carbon monoxide, nitrogen oxides and organic fumes

SECTION 11: Toxicological Information
   RTECS Data:       No information available in the RTECS files
   Carcinogenic Effects:       No data
   Mutagenic Effects:       No data
   Tetratogenic Effects:       No data

SECTION 12: Ecological Information
   Ecological Information:       No information available

SECTION 13: Disposal Considerations
   Disposal:       Dispose of according to local, state and federal regulations

SECTION 14: Transportation
   Shipping Name (CFR):       Non-hazardous
   Hazard Class (CFR):       NA
   Additional Hazard Class (CFR):       NA
   Packaging Group (CFR):       NA
   UN ID Number (CFR):       NA
   Shipping Name (IATA):       Non-hazardous
   Hazard Class (IATA):       NA
   Additional Hazard Class (IATA):       NA
   Packaging Group (IATA):       NA
   UN ID Number (IATA):       NA

SECTION 15: Regulatory Information
   TSCA:       Not listed in the TSCA inventory
   SARA (Title 313):       Title compound not listed
   Second Ingredient:       none


SECTION 16 - ADDITIONAL INFORMATION
N/A

海关数据查看详细

中国海关编码:2933990090

概述:
2933990090. 其他仅含氮杂原子的杂环化合物. 增值税率:17.0%. 退税率:13.0%. 监管条件:无. 最惠国关税:6.5%. 普通关税:20.0%
申报要素:
品名, 成分含量, 用途, 乌洛托品请注明外观, 6-己内酰胺请注明外观, 签约日期
摘要/Summary:
2933990090. heterocyclic compounds with nitrogen hetero-atom(s) only. VAT:17.0%. Tax rebate rate:13.0%. . MFN tariff:6.5%. General tariff:20.0%

分子结构与计算化学数据展开↓

分子结构数据


1、  摩尔折射率:50.28

2、  摩尔体积(cm3/mol):197.0

3、  等张比容(90.2K):451.6

4、  表面张力(dyne/cm):27.6

5、  极化率(10-24cm3):19.93

计算化学数据


1.疏水参数计算参考值(XlogP):-1.4

2.氢键供体数量:4

3.氢键受体数量:4

4.可旋转化学键数量:0

5.互变异构体数量:无

6.拓扑分子极性表面积48.1

7.重原子数量:13

8.表面电荷:0

9.复杂度:95.8

10.同位素原子数量:0

11.确定原子立构中心数量:0

12.不确定原子立构中心数量:0

13.确定化学键立构中心数量:0

14.不确定化学键立构中心数量:0

15.共价键单元数量:1

上下游相关产品

上游产品

更多
  • 4741-99-5

    N,N'-双(2-氨乙基)-1,3-丙二胺

  • 112-24-3

    三乙烯四胺(TETA)

  • 773837-37-9

    sodium cyanide

下游产品

更多
  • 60239-20-5

    1,4,7,10-四(羧甲基)-1,4,7,10-四阿扎环十四烷
